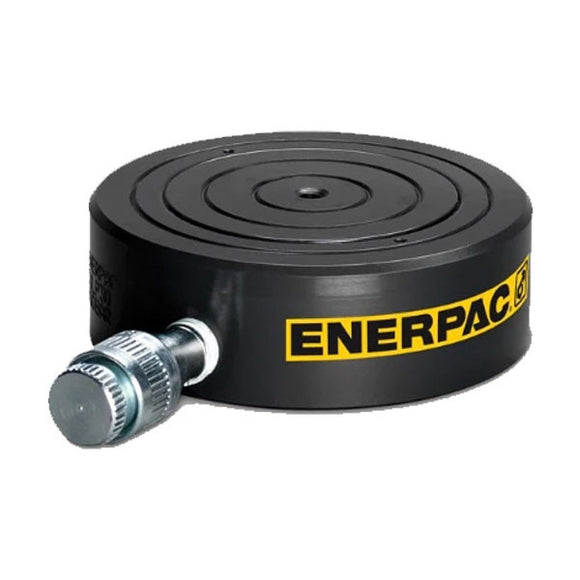

The Enerpac CULP50 is a 50-ton-class CULP-Series hydraulic cylinder with a 0.24" stroke. Its low starting height suits applications with restricted clearance.
Key specifications
- Capacity class: 50 tons
- Stroke: 0.24"
- Action: single-acting
- Return: load
- Maximum operating pressure: 10,150 psi
- Plunger: solid
- Stroke limit: stop ring
Before ordering
Match load, stroke, starting clearance and pump oil volume to the complete application. Pump, hoses and any application-specific fixtures are sold separately. Retraction requires an external load or force; this model does not have spring return.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 61.8 Ton |
|---|---|
| Cylinder Type | Low Height Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 0.24 in |
