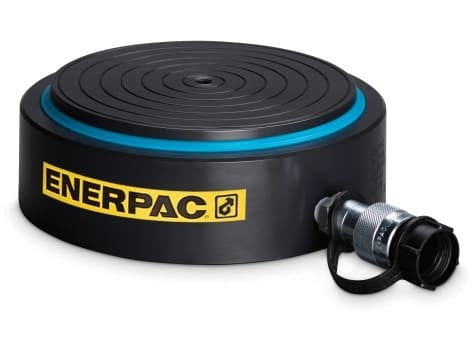

The Enerpac CUSP100 is a 100-ton-class CUSP-Series hydraulic cylinder with a 0.58" stroke. Its low starting height suits applications with restricted clearance.
Key specifications
- Capacity class: 100 tons
- Stroke: 0.58"
- Action: single-acting
- Return: load
- Maximum operating pressure: 10,150 psi
- Plunger: solid
- Straight maximum stroke: 0.58"
- Tilted stroke: 0.39"
- Tilting function: up to 4 degrees
- Stroke indication: red line; no stop ring
Before ordering
Match load, stroke, starting clearance and pump oil volume to the complete application. Pump, hoses and any application-specific fixtures are sold separately. Retraction requires an external load or force; this model does not have spring return. Monitor the red-line stroke indicator and do not exceed the permitted travel.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | CUSP |
| Cylinder Type | Low Height Hydraulic Cylinders |
| Load Capacity | 121.1 Ton |
| Cylinder Stroke | 0.58 in |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | Yes |
| Capacity Range | 101-200 Ton |
