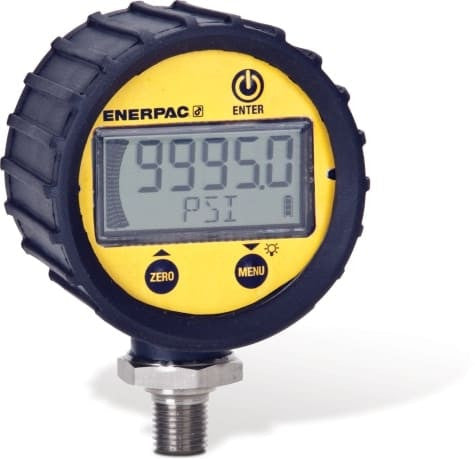

The Enerpac DGR2 is a battery-powered digital hydraulic pressure gauge for remote system-pressure monitoring up to 20,000 psi (1,380 bar). It provides ±0.25% accuracy and lets the user select psi, bar, MPa or kg/cm² directly from the display.
- Pressure range: 0-20,000 psi (0-1,380 bar)
- Accuracy: ±0.25%
- Hydraulic connection: 1/4 in. NPTF male
- Selectable units: psi, bar, MPa and kg/cm²
- IP67 enclosure rating
- Power: 3 VDC from two AA alkaline batteries
- User-selectable update rate
- Zero-reset function
The battery-powered design provides flexibility for remote hydraulic pressure monitoring without sacrificing the readability of a digital display.
