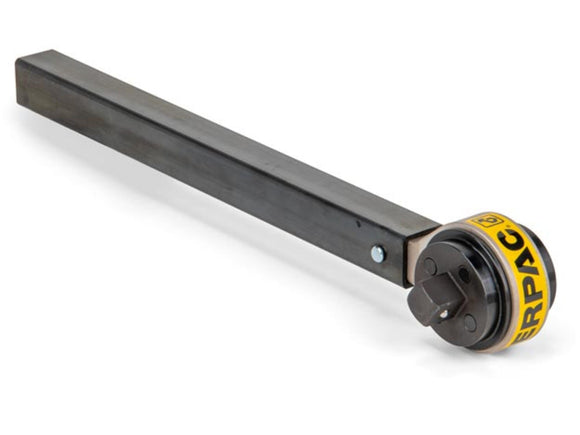

The Enerpac E291 is a reaction-bar manual torque multiplier for applications requiring greater output torque than the input wrench alone can provide.
Key specifications
- Nominal maximum output torque: 1,000 ft-lb
- Maximum input torque: 333 ft-lb
- Estimated torque ratio: 3:1
- Input square drive: 1/2"
- Output square drive: 3/4"
- Reaction type: bar
- Anti-backlash mechanism: no
Before ordering
Use the manufacturer input/output relationship to set input torque. Confirm socket rating, reaction-bar contact and working clearance. Do not exceed the rated input or output torque.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Torque Multipliers |
|---|---|
| Product Type | Reaction Bar Multiplier |
| Maximum Torque (ft-lb) | 1,000 |
| Maximum Input Torque (ft-lb) | 333 |
| Torque Ratio | 3:1 |
| Square Drive Size | 3/4 in |
| Input Drive Size | 1/2 in |
| Power Source | Manual |
| Torque Multiplier Type | Reaction Bar |
| Compatible Products | BSH75088, BSH75094, BSH75125, BSH75131, BSH75144, BSH75156, BSH75163, BSH75163, BSH75175, BSH75188, BSH7519, BSH7519, BSH75194, BSH75200, BSH7524, BSH7527, BSH7527, BSH7530, BSH7530, BSH7532, BSH7535, BSH7536, BSH7538, BSH7543, BSH7546, BSH7546, BSH7550 |
| Weight | 5.5 lb |
