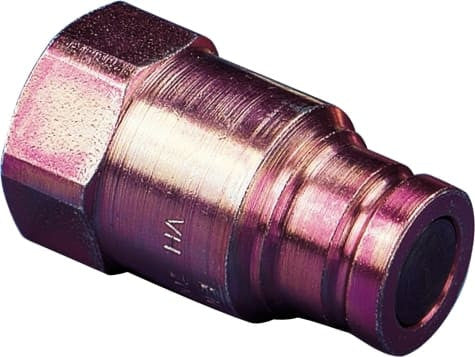

The Enerpac FH604 is the male half of an Enerpac flush-face hydraulic coupler with a 3/8 in NPTF connection. Maximum flow capacity is 2,500 cubic inches per minute. Connected length, with the male and female halves joined, is 4.36 in.
Flush-face couplers have flat mating faces that wipe clean easily and spill very little oil when connected or disconnected. Push-to-connect operation makes coupling quick, which helps on jobs where hoses are changed often or where dirt and oil spills are a concern.
Key features
- 3/8 in High Flow Flush-face Couplers
- Featuring Push-to-connect operation for a positive connection
- Flush-face, zero-leak operation for minimal spillage
- Hydraulic Tool Manufacturers Association recognized for safety and performance
Frequently asked questions
Which part of the coupler is the FH604?
It is the male half.
What thread does the FH604 have?
3/8 in NPTF.
What do I need for a complete connection?
One male half and one female half of the same coupler series. Order the matching half if your equipment does not already have it.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Family | Hydraulic Couplers |
|---|---|
| Maximum Operating Pressure | 700 psi |
| Maximum Flow Capacity | 2500 cu in/min |
