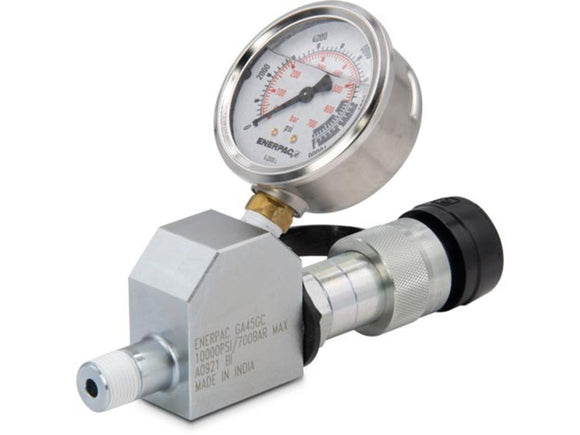

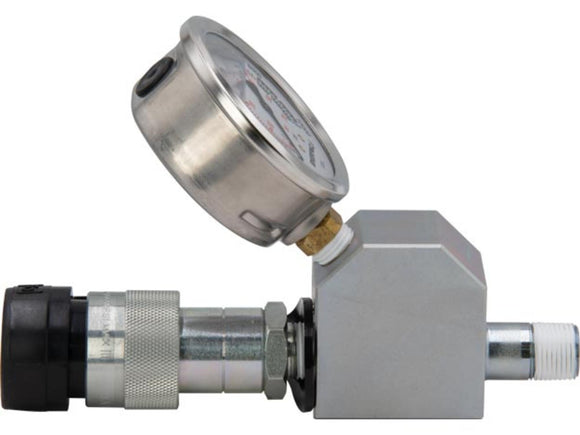

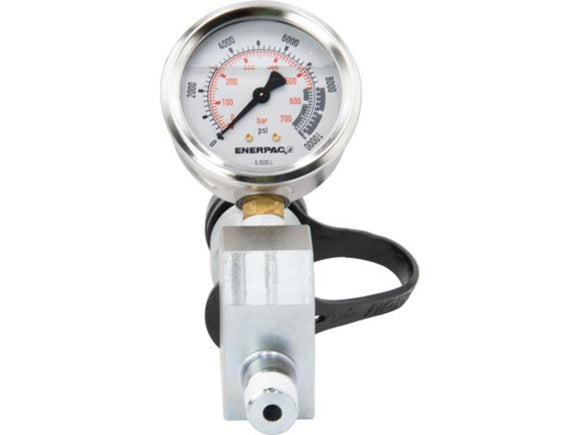

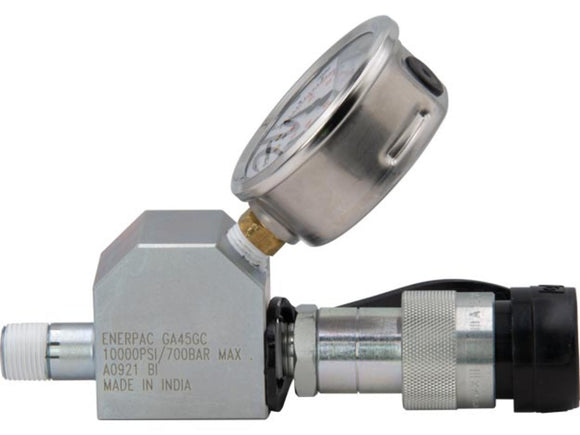

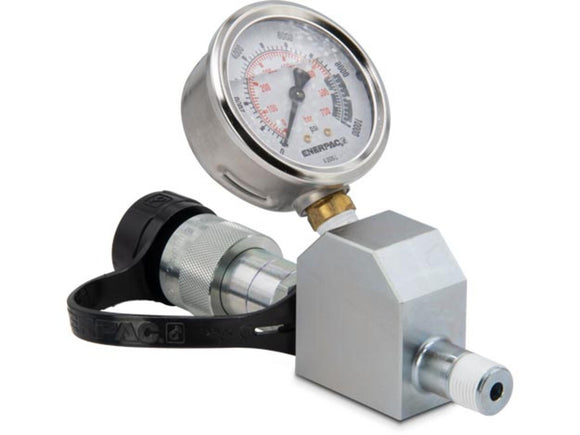

The Enerpac GA45GC combines an angled adapter, pressure gauge and female coupler to make hydraulic pressure easier to view.
Key specifications
- Gauge orientation: 45 degrees
- Male connection: 3/8" NPTF
- Gauge range: 0–10,000 psi / 0–700 bar
Included components
- 45-degree gauge adapter
- G2535L glycerin-filled pressure gauge
- CR400 high-flow female coupler
Before ordering
Match the male port connection and high-flow coupler to your hydraulic circuit.
Specifications
| Connection 1 | 3/8" NPTF male |
|---|---|
| Connection 2 | CR400 |
| Female End | CR400 |
| Gauge Port | G2535L |
| Major Graduation | 2,000 psi |
| Male End | 3/8" - 18 NPTF |
| Minor Graduation | 200 psi |
| Style | Glycerine Filled |
