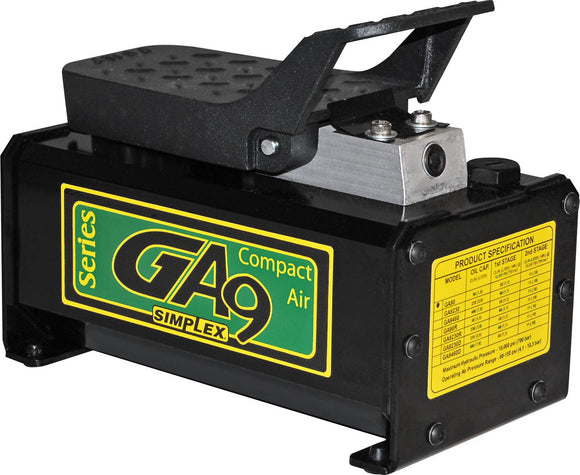

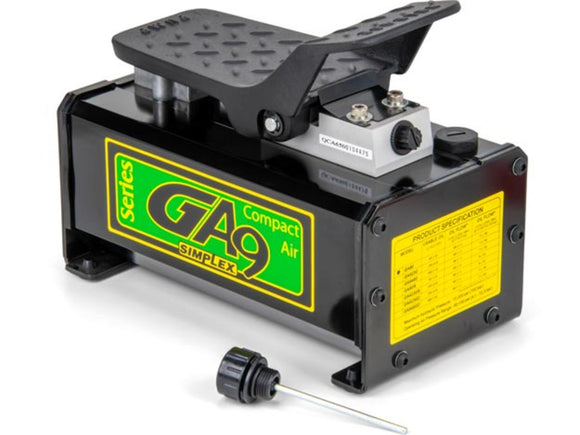

The Simplex GA90 is an air-driven hydraulic foot pump for compatible single-acting hydraulic tools.
Key specifications
- Maximum hydraulic pressure: 10,000 psi
- Usable oil capacity: 90 in³
- Control: foot pedal
- Tool action: single-acting
- Operating air pressure range: 60–150 psi
- Oil flow at 10,000 psi: 11 in³/min
Before ordering
Confirm required oil volume, pressure, air supply and hydraulic connections. Match valve operation and tool return requirements to the application.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Power Source | Air |
| Usable Oil Capacity | 90 in³ |
| Valve Operation | Manual |
| Control Type | Foot Pedal |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 60 - 150 psi |
| Output Flow Rate at 10,000 psi | 11 in³/min |
| Output Flow Rate at 0 psi | 68 in³/min |
| Sound Level | 85 dBA |
| Weight | 18.5 lb |
