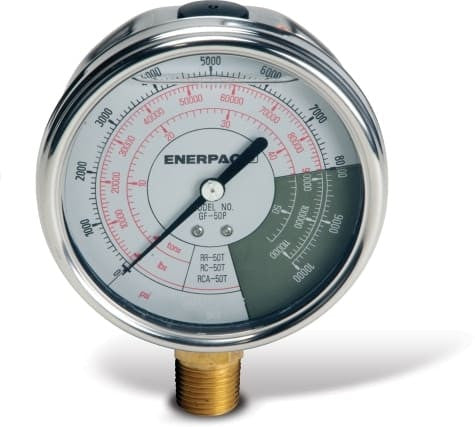

The Enerpac GF230P is a glycerin-filled hydraulic force and pressure gauge with an imperial force scale. It combines a 0-10,000 psi pressure scale with 0-22 / 0-32 ton force scales, allowing the operator to monitor hydraulic pressure and the corresponding load on compatible cylinder or press applications.
- Pressure range: 0-10,000 psi
- Force range: 0-22 / 0-32 ton force scales
- Gauge face: 4 in.
- Accuracy: ±1% of full scale
- Connection: 1/2 in. NPTF
- Gauge type: Glycerin-filled
- Scale: Imperial pressure and force scale
GF-Series gauges are intended for applications where load as well as hydraulic pressure must be monitored, including pressing, weighing and testing.
Specifications
| Product Family | Hydraulic Pressure Gauges |
|---|---|
| Product Type | Force and Pressure Gauge |
| Accuracy Percent of Full Scale | 1 |
| Cylinder Series Compatibility | RC, RCS, RR, RSM |
| Face Diameter | 4 in |
| Force | 0 - 22/32 Ton |
| Gauge Compatibility | All 30 ton RC, RCS, RR, RSM Cylinders |
| Mount | Lower Mount |
| Required Gauge Adaptor | GA1, GA2 |
| Scale | Imperial |
| Style | Glycerine Filled |
| Thread | 1/2 NPTF |
| Units per Division | 100 psi, .5/.5 ton |
