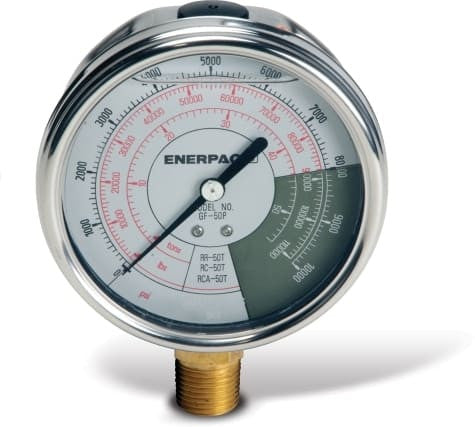

The Enerpac GF50P combines a hydraulic pressure scale with cylinder-specific force scales. Use the force readings only with the cylinder applications listed below.
Key specifications
- Pressure range: 0–10,000 psi
- Face diameter: 4"
- Connection: 1/2" NPTF
- Fill: glycerin
- Accuracy: ±1% of full scale
- Force-scale application: 50-ton RC and RR cylinders
- Force scale: 0–55 tons
Before ordering
Confirm the cylinder model before relying on the force scale. Gauge scale limits are not cylinder load ratings; stay within the rated capacity of the cylinder and the complete system.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Pressure Gauges |
|---|---|
| Product Type | Force and Pressure Gauge |
| Accuracy Percent of Full Scale | 1 |
| Cylinder Series Compatibility | RC, RCH |
| Face Diameter | 4 in |
| Force | 0 - 110,000 lb |
| Gauge Compatibility | All 50 ton RC, RR, RAC, RACL Cylinders |
| Mount | Lower Mount |
| Required Gauge Adaptor | GA1, GA2 |
| Scale | Imperial |
| Style | Glycerine Filled |
| Thread | 1/2 NPTF |
| Units per Division | 100 psi, 1000 lbs, 1 ton |
