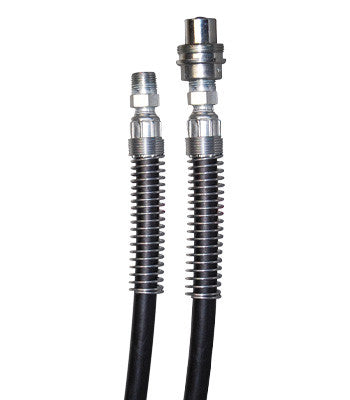

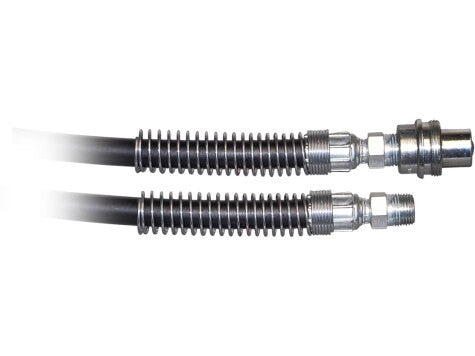

The Simplex HCA6 is an industrial hydraulic hose for connecting compatible pumps and hydraulic tools. One end has a C213 hose coupler.
Key specifications
- Length: 6 ft
- Inside diameter: 1/4"
- Maximum operating pressure: 10,000 psi
- End 1: 3/8" NPTF male
- End 2: C213 coupler
Before ordering
Confirm both mating connections, pressure rating, routing clearance and minimum bend requirements. Inspect the hose and couplers before use and avoid tension, abrasion and sharp bends.
Related replacement parts and equipment
- C211 matching ram coupler half — The hose has a C213 hose coupler, which mates with the C211 ram half. Confirm the mating port thread and complete system pressure rating.
- C209 complete coupler set — The C209 set contains C211 and C213 halves. This hose already includes a C213 half; order a full set only if both halves are required.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Hoses |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| End One Coupler | 3/8" NPTF Male |
| End Two Coupler | C213 Coupler |
| Hose Oil Capacity | When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in³) = .5892 x Length (ft) in³ |
| Internal Diameter | 0.25 in |
| Length | 6 ft |
| Weight | 2.15 lb |
