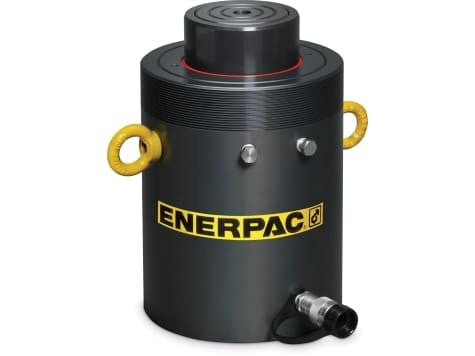

HCG-10012 100 Ton Single Acting Cylinder
Model : HCG10012 Series : HCG Product Lines : Industrial Tools Hardened surface resists side-loading and cyclic wear 10% side-load resistance over full stroke Stop-ring to prevent plunger blow-out Weather protected, inside and out Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke Certified lifting eyes, base mounting holes and collar threads
Model : HCG10012 Series : HCG Product Lines : Industrial Tools Hardened surface resists side-loading and cyclic wear 10% side-load resistance over full stroke Stop-ring to prevent plunger blow-out Weather protected, inside and out Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke Certified lifting eyes, base mounting holes and collar threads
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | HCG |
| Cylinder Type | High Tonnage Hydraulic Cylinders |
| Load Capacity | 113 Ton |
| Cylinder Stroke | 11.81 in |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
| Capacity Range | 101-200 Ton |
