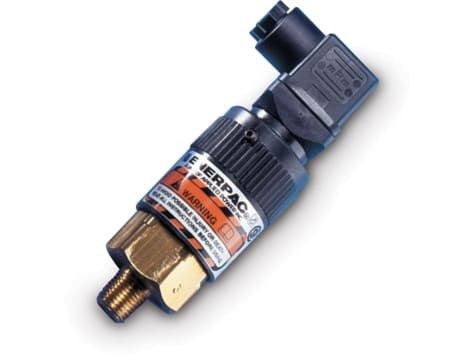

The IC51 Enerpac electrical pressure switch monitors hydraulic system pressure for workholding control applications. It has an adjustable pressure range of 3000 to 7500 psi and a 1/4-18 NPT oil port.
Enerpac IC-Series switches can provide a signal for pump or peripheral-device control. Confirm the required pressure range, oil-port connection and equipment compatibility before ordering.
Specifications
| Product Family | Switches |
|---|---|
| Product Type | Electrical Switch |
| Maximum Operating Pressure | 7,500 psi |
| Accuracy | 2% |
| Adjustable Pressure Range | 205 - 515 psi |
| Deadband | 250 - 800 psi |
| Electrical Specification | 125 VAC, 50/60 Hz @ 5A |
| Minimum Operating Pressure | 500 psi |
| Oil Port | .250 - 18 NPT |
| Switch Point Repeatability Percent of Range | +/- 2 |
| Switch Type | Pressure Switch |
| Weight | 1 lb |
