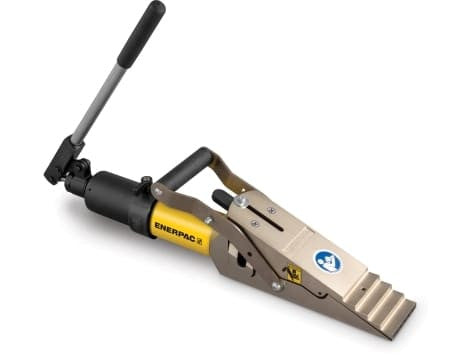

Integral Lifting Wedge, 16 Ton
Model : LWC16 Series : LW Product Lines : Industrial Tools Minimized access gap for greater accessibility on applications with limited insertion space Secure, stable lifting and lowering motion with no slippage Single-acting spring return cylinder allows for automatic, mechanical retraction Integrated hand pump offers greater maneuverability Includes safety block SB2, lifting block LWB1, & carrying case
Model : LWC16 Series : LW Product Lines : Industrial Tools Minimized access gap for greater accessibility on applications with limited insertion space Secure, stable lifting and lowering motion with no slippage Single-acting spring return cylinder allows for automatic, mechanical retraction Integrated hand pump offers greater maneuverability Includes safety block SB2, lifting block LWB1, & carrying case
Specifications
| Load Capacity | 16 Ton |
|---|---|
| Stroke | 0.83 in |
| Maximum Spread | 0.83 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Hydraulic |
| Capacity Range | 11-25 Ton |
| Maximum Lifting Height | 2.02 in |
| Maximum Lifting Height Using Stepped Block | 2.72 in |
| Minimum Clearance Gap | 0.39 in |
| Spreading Force | 16 Ton |
| Tip Clearance | 0.39 in |
