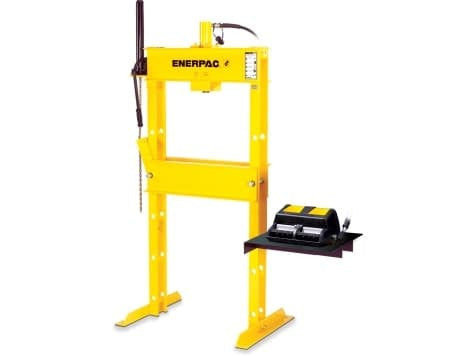

The Enerpac IPA1220 is a 10 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RC1010 single-acting cylinder and an XA12 air pump, matched with hose and gauge. It offers up to 40 in of vertical daylight, a maximum bed width of 18.63 in and 10 in of cylinder stroke, and weighs 160 lb.
H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The bed height is adjusted manually, and the roller head lets the cylinder be moved side to side by hand. The air pump runs on shop air. The single-acting cylinder retracts by spring.
Key features
- Quality welded frame for maximum strength and long life
- Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)
Frequently asked questions
What comes with the Enerpac IPA1220?
The press frame, the RC1010 single-acting cylinder and the XA12 air pump, matched with hose and gauge.
What is the daylight and bed width of the IPA1220?
Maximum vertical daylight is 40 in and maximum bed width is 18.63 in. Cylinder stroke is 10 in.
What powers the IPA1220?
An XA12 air pump, which runs on shop air.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Type | H-Frame Press |
|---|---|
| Pump Model | XA12 |
| Load Capacity | 10 ton |
| Cylinder Stroke | 10 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Air |
| Valve Operation | Manual |
| Included Cylinder | RC1010 |
| Included Cylinder Type | Single-Acting, Spring Return |
| Maximum Bed Width | 18.63 in |
| Maximum Vertical Daylight | 40 in |
| Weight | 160 lb |
