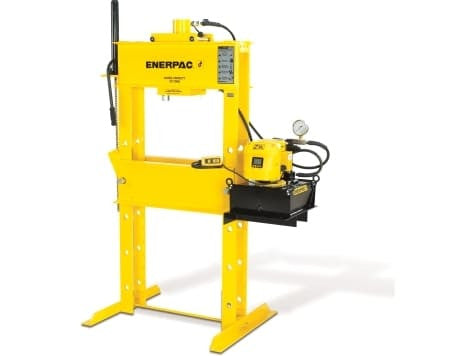

IPE10060 100 Ton H Frame Hydraulic Press with RR10013 Double Acting Cylinder and ZE4420SBN Electric Pump

The Enerpac IPE10060 is a 100 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RR10013 double-acting cylinder and a ZE4420SBN electric pump, matched with hose and gauge. It offers up to 41 in of vertical daylight, a maximum bed width of 35 in and 13 in of cylinder stroke, and weighs 1,743 lb.

H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The Hydra-Lift bed adjusts vertical daylight with little effort, and the roller head lets the cylinder move and lock side to side over the work. The electric pump suits frequent, high-cycle pressing. The double-acting cylinder retracts hydraulically for controlled return.

Key features

• Quality welded frame for maximum strength and long life
• Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
• Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)

Frequently asked questions

What comes with the Enerpac IPE10060?
The press frame, the RR10013 double-acting cylinder and the ZE4420SBN electric pump, matched with hose and gauge.

What is the daylight and bed width of the IPE10060?
Maximum vertical daylight is 41 in and maximum bed width is 35 in. Cylinder stroke is 13 in.

What powers the IPE10060?
A ZE4420SBN electric pump.
