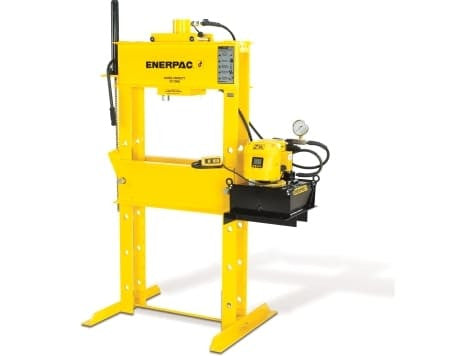

IPE3060 30 Ton H Frame Hydraulic Press with RR3014 Double Acting Cylinder and ZE3410SBN Electric Pump

The Enerpac IPE3060 is a 30 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RR3014 double-acting cylinder and a ZE3410SBN electric pump, matched with hose and gauge. It offers up to 54.5 in of vertical daylight, a maximum bed width of 29 in and 14 in of cylinder stroke, and weighs 722 lb.

H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The Hydra-Lift bed adjusts vertical daylight with little effort, and the roller head lets the cylinder be moved side to side by hand. The electric pump suits frequent, high-cycle pressing. The double-acting cylinder retracts hydraulically for controlled return.

Key features

• Quality welded frame for maximum strength and long life
• Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
• Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)

Frequently asked questions

What comes with the Enerpac IPE3060?
The press frame, the RR3014 double-acting cylinder and the ZE3410SBN electric pump, matched with hose and gauge.

What is the daylight and bed width of the IPE3060?
Maximum vertical daylight is 54.5 in and maximum bed width is 29 in. Cylinder stroke is 14 in.

What powers the IPE3060?
A ZE3410SBN electric pump.
