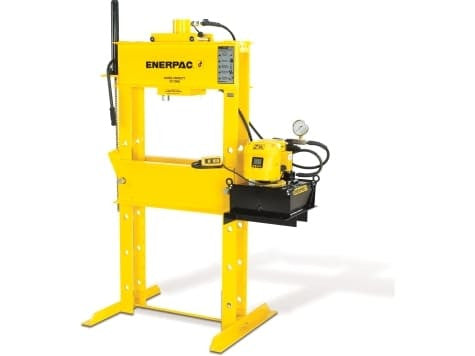

The Enerpac IPE5060 is a 50 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RR5013 double-acting cylinder and a ZE4420SBN electric pump, matched with hose and gauge. It offers up to 48.56 in of vertical daylight, a maximum bed width of 28.75 in and 13 in of cylinder stroke, and weighs 1,051 lb.
H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The Hydra-Lift bed adjusts vertical daylight with little effort, and the roller head lets the cylinder move and lock side to side over the work. The electric pump suits frequent, high-cycle pressing. The double-acting cylinder retracts hydraulically for controlled return.
Key features
- Quality welded frame for maximum strength and long life
- Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)
Frequently asked questions
What comes with the Enerpac IPE5060?
The press frame, the RR5013 double-acting cylinder and the ZE4420SBN electric pump, matched with hose and gauge.
What is the daylight and bed width of the IPE5060?
Maximum vertical daylight is 48.56 in and maximum bed width is 28.75 in. Cylinder stroke is 13 in.
What powers the IPE5060?
A ZE4420SBN electric pump.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Type | H-Frame Press |
|---|---|
| Pump Model | ZE4420SBN |
| Load Capacity | 50 Ton |
| Cylinder Stroke | 13 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Electric |
| Valve Operation | Electric |
| Capacity Range | 26-50 Ton |
| Included Cylinder | RR5013 |
| Included Cylinder Type | Double-Acting, Hydraulic Return |
| Maximum Bed Width | 28.75 in |
| Maximum Vertical Daylight | 48.56 in |
| Weight | 1051 lb |
