IPH10030 100 Ton H Frame Hydraulic Press with RC10010 single acting Cylinder and P462 Hand Pump

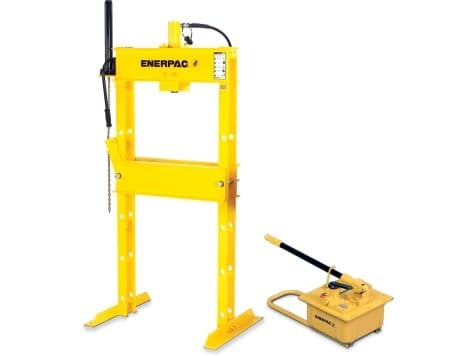

The Enerpac IPH10030 is a 100 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RC10010 single-acting cylinder and a P462 hand pump, matched with hose and gauge. It offers up to 41 in of vertical daylight, a maximum bed width of 35 in and 10 in of cylinder stroke, and weighs 1,656 lb.

H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The Hydra-Lift bed adjusts vertical daylight with little effort, and the roller head lets the cylinder move and lock side to side over the work. The hand pump needs no air or electrical supply, so the press can go anywhere in the shop. The single-acting cylinder retracts by spring.

Key features

• Quality welded frame for maximum strength and long life
• Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
• Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)

Frequently asked questions

What comes with the Enerpac IPH10030?
The press frame, the RC10010 single-acting cylinder and the P462 hand pump, matched with hose and gauge.

What is the daylight and bed width of the IPH10030?
Maximum vertical daylight is 41 in and maximum bed width is 35 in. Cylinder stroke is 10 in.

What powers the IPH10030?
A P462 hand pump, operated by hand.
