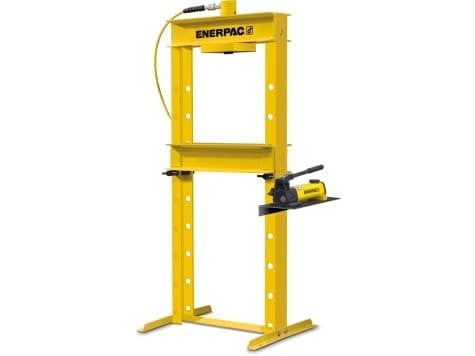

The Enerpac IPH1240 is a 10 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RC1010 single-acting cylinder and a P392 hand pump, matched with hose and gauge. It offers up to 40 in of vertical daylight, a maximum bed width of 18.63 in and 10 in of cylinder stroke, and weighs 158 lb.
H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The bed height is adjusted manually, and the roller head lets the cylinder be moved side to side by hand. The hand pump needs no air or electrical supply, so the press can go anywhere in the shop. The single-acting cylinder retracts by spring.
Key features
- Quality welded frame for maximum strength and long life
- Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
- Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)
Frequently asked questions
What comes with the Enerpac IPH1240?
The press frame, the RC1010 single-acting cylinder and the P392 hand pump, matched with hose and gauge.
What is the daylight and bed width of the IPH1240?
Maximum vertical daylight is 40 in and maximum bed width is 18.63 in. Cylinder stroke is 10 in.
What powers the IPH1240?
A P392 hand pump, operated by hand.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Type | H-Frame Press |
|---|---|
| Pump Model | P392 |
| Load Capacity | 10 Ton |
| Cylinder Stroke | 10 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Manual |
| Valve Operation | Manual |
| Capacity Range | 6-10 Ton |
| Included Cylinder | RC1010 |
| Included Cylinder Type | Single-Acting, Spring Return |
| Maximum Bed Width | 18.63 in |
| Maximum Vertical Daylight | 40 in |
| Weight | 158 lb |
