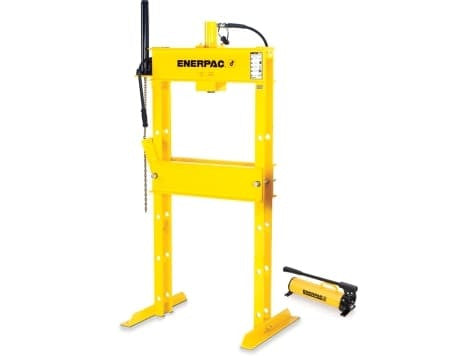

IPH5031 50 Ton H Frame Hydraulic Press with RC506 single acting Cylinder and P80 Hand Pump

The Enerpac IPH5031 is a 50 ton H-frame hydraulic press supplied as a complete system: the welded press frame, an Enerpac RC506 single-acting cylinder and a P80 hand pump, matched with hose and gauge. It offers up to 48.56 in of vertical daylight, a maximum bed width of 28.75 in and 6 in of cylinder stroke, and weighs 867 lb.

H-frame presses are used to install and remove bearings, bushings and gears, straighten shafts, bend parts and handle general assembly and repair work in maintenance shops and production areas. The Hydra-Lift bed adjusts vertical daylight with little effort, and the roller head lets the cylinder move and lock side to side over the work. The hand pump needs no air or electrical supply, so the press can go anywhere in the shop. The single-acting cylinder retracts by spring.

Key features

• Quality welded frame for maximum strength and long life
• Hydra-Lift bed for effortless adjustment of the vertical daylight (10-ton models are manual)
• Roller head design is standard to allow movement and locking of the cylinder from side to side (10-ton, 25-ton, and 30-ton are manual)

Frequently asked questions

What comes with the Enerpac IPH5031?
The press frame, the RC506 single-acting cylinder and the P80 hand pump, matched with hose and gauge.

What is the daylight and bed width of the IPH5031?
Maximum vertical daylight is 48.56 in and maximum bed width is 28.75 in. Cylinder stroke is 6 in.

What powers the IPH5031?
A P80 hand pump, operated by hand.
