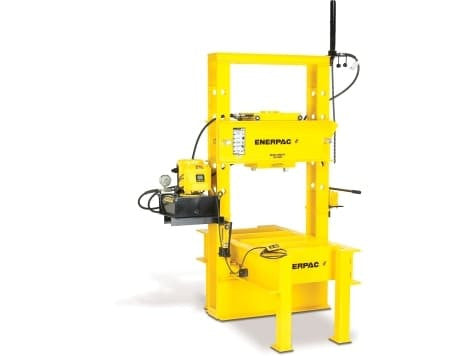

IPR-5075 IPR050D13-2 w/ ZE4420SB-N
Model : IPR5075 Series : IPR Product Lines : Industrial Tools Quality welded frame for maximum strength and long life Exclusive "Hydra-Lift™" bed for effortless adjustment of the vertical daylight (10-ton models are manual) Roller head design is standard to allow movement and locking of the cylinder from side to side(10-ton, 25-ton, and 30-ton are manual) All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Model : IPR5075 Series : IPR Product Lines : Industrial Tools Quality welded frame for maximum strength and long life Exclusive "Hydra-Lift™" bed for effortless adjustment of the vertical daylight (10-ton models are manual) Roller head design is standard to allow movement and locking of the cylinder from side to side(10-ton, 25-ton, and 30-ton are manual) All models in the Quick Selection Chart have been matched to a pump, cylinder, hoses and gauge, offering the complete package
Specifications
| Pump Model | ZE4420SBN |
|---|---|
| Load Capacity | 50 Ton |
| Cylinder Stroke | 13.13 in |
| Maximum Operating Pressure | 10,000 psi |
| Capacity Range | 26-50 Ton |
| Cylinder Model Number | RR5013 |
| Maximum Bed Width | 28.75 in |
| Maximum Vertical Daylight | 37.12 in |
| Pressing Speed | 11.1 in/sec |
| Rapid Advance Speed | 1 in/sec |
| Vertical Daylight Maximum a | 37.12 in |
| Vertical Daylight Minimum a | 6 in |
