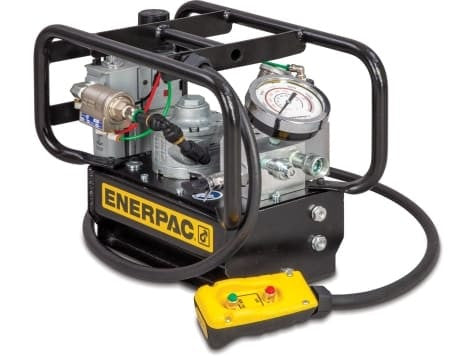

LA2504TX-QR Enerpac LAT-Series Air Hydraulic Torque Wrench Pump is a lightweight pneumatic power unit built specifically for hydraulic bolting work. Its compact reservoir and two-speed operation make it a better fit for crews that need a portable torque-wrench pump without the size of a larger shop-style air power unit.
Compact Air Power for Mobile Bolting Work
The LAT platform is useful where compressed air is already available and electrical cords would be inconvenient around the work area. The two-speed pump arrangement moves oil more quickly during low-pressure tool travel, then transitions for high-pressure torque-wrench operation as resistance increases.
LA2504TX-QR is the smaller oil-capacity option in this collection, so it is best suited to bolting setups where portability matters and the connected wrench circuit does not require a large reservoir. The model is rated for standard 10,000 psi hydraulic torque-wrench systems.
Specifications
| Series | LAT |
|---|---|
| Pump Series | LAT Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Pump Speed | Two-Speed |
| Reservoir Capacity | 0.8 gal |
| Usable Oil Capacity | 0.5 gal |
| Weight | 39.6 lb |
