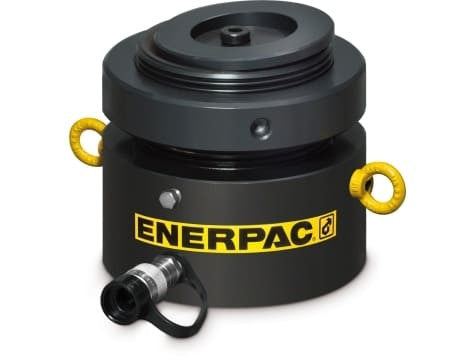

The Enerpac LPL1602 is a lock nut hydraulic cylinder intended for lifting and mechanically supporting a load after the required position is reached. This model is specified with a rated capacity of 179 tons and a stroke of 1.77 in.
Key specifications
- Capacity: 179 tons
- Stroke: 1.77 in.
Selection considerations
Select the cylinder by lifting force and stroke, and plan the setup so the lock nut can be engaged safely once the load reaches position.
Specifications
| Load Capacity | 179 Ton |
|---|---|
| Cylinder Type | Lock Nut Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 1.77 in |
