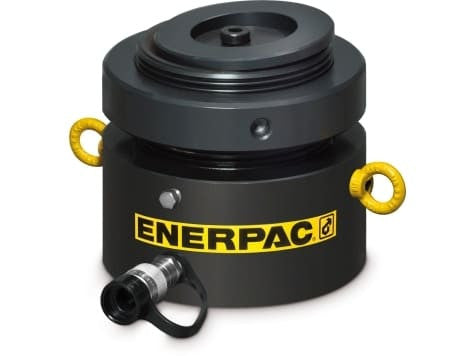

The Enerpac LPL2002 is a 200-ton-class LPL-Series hydraulic cylinder with a 1.77" stroke. A mechanical lock nut supports the load when positioned according to the manufacturer instructions.
Key specifications
- Capacity class: 200 tons
- Stroke: 1.77"
- Action: single-acting
- Return: load
- Maximum operating pressure: 10,150 psi
- Plunger: solid
- Load support: mechanical lock nut
Before ordering
Match load, stroke, starting clearance and pump oil volume to the complete application. Pump, hoses and any application-specific fixtures are sold separately. Retraction requires an external load or force; this model does not have spring return. Follow the manufacturer procedure for engaging and releasing the lock nut.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | LPL |
| Cylinder Type | Lock Nut Hydraulic Cylinders |
| Load Capacity | 223 Ton |
| Cylinder Stroke | 1.77 in |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | Yes |
| Low Height | Yes |
| Capacity Range | 101-200 Ton, 201-500 Ton |
