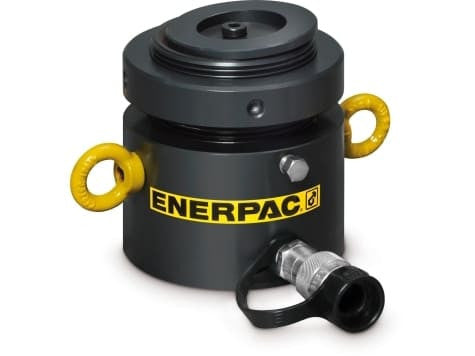

The Enerpac LPL602 is a lock nut hydraulic cylinder intended for lifting and mechanically supporting a load after the required position is reached. This model is specified with a rated capacity of 68 tons.
Key specifications
- Capacity: 68 tons
Product features
- Lock nut provides mechanical load holding for a safe work environment.
- Integrated tilt saddle allows for up to 5 degrees of misalignment.
- Extreme low-height for use in confined areas.
- 10% side-load resistance of maximum capacity.
- Overflow port as stroke limiter to prevent plunger blow-out.
Selection considerations
Choose capacity and stroke for the lifting requirement, then verify how the mechanical lock nut will be accessed and supported in the final setup.
Specifications
| Load Capacity | 68 Ton |
|---|---|
| Cylinder Type | Lock Nut Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Load Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 1.97 in |
