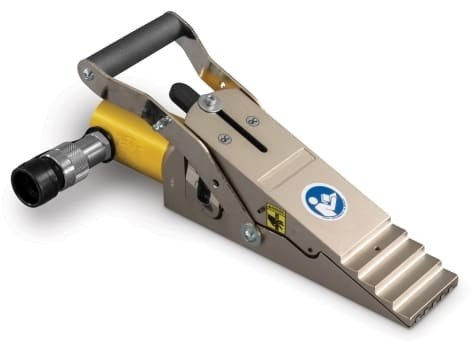

The Enerpac LW16 is a hydraulic lifting wedge for creating initial lifting clearance under suitable loads. Its stepped contact profile provides staged lift with a compatible external pump.
Key specifications
- Maximum lifting force: 16 tons
- Minimum clearance gap: 0.39"
- Maximum lift per stage: 0.83"
- Maximum lifting height: 2.02"
- Maximum height using stepped block: 2.72"
- Oil capacity: 4.75 in³
Included components
- LW16 hydraulic lifting wedge
- SB2 safety block
Before ordering
Confirm the load, starting gap, contact surface and support arrangement. A compatible external hydraulic pump and hose are required separately. Mechanically support the load after lifting.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Lifting Wedge |
|---|---|
| Load Capacity | 16 Ton |
| Stroke | 0.83 in |
| Maximum Spread | 0.83 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Hydraulic |
| Capacity Range | 11-25 Ton |
| Maximum Lifting Force | 16 ton |
| Maximum Lifting Height | 2.02 in |
| Maximum Lifting Height Using Stepped Block | 2.72 in |
| Minimum Clearance Gap | 0.39 in |
| Oil Capacity | 4.75 in³ |
| Spreading Force | 16 ton |
| Tip Clearance | 0.39 in |
| Weight | 15.4 lb |
