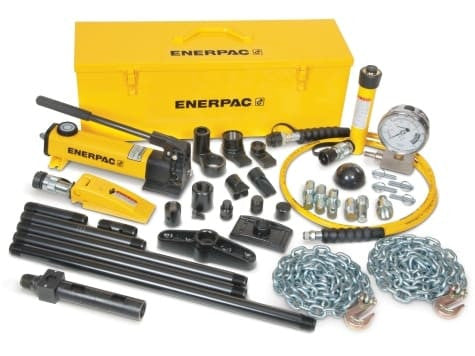

The Enerpac MS24 is a 2.5 ton maintenance set: an RC55 hydraulic cylinder, a lightweight two-speed hand pump, hose, gauge and 33 attachments, packed in a storage crate.
With the attachments, the RC55 cylinder delivers up to 2.5 tons of force with up to 5 in of stroke, so one kit can push, pull, lift, press, straighten, spread and clamp. The set includes a wedge spreader and lock-on or threaded connectors for quick setup on maintenance and repair jobs.
Key features
- RC55 hydraulic cylinder
- Two-speed hydraulic hand pump
- 33 cylinder attachments
- Hose, gauge and storage crate included
Before you order
When using attachments, limit maximum system pressure to half of the rated pressure (5,000 psi). Without attachments, tonnage and pressure capacity are double these values.
Frequently asked questions
What is the capacity of the MS24?
2.5 tons when used with the set attachments, at a maximum system pressure of 5,000 psi.
Can I use other attachments with the MS24?
Enerpac says to use only the attachments supplied with the set. Non-Enerpac attachments or longer extension tubes can reduce column strength and create unsafe conditions.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Cylinder Stroke | 5 in |
|---|---|
| Maximum Operating Pressure | 5,000 psi |
| Collapsed Height | 8.5 in |
| Number of Attachment Components | 33 |
| Set Type | Maintenance Set |
| Stroke Ranges | 4 - 5.99 in |
| Weight | 59 lb |
