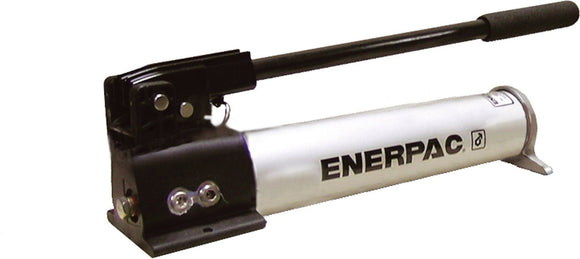

P392AL Enerpac Aluminum Hand Pump delivers the familiar 55 in³, two-speed P392 hydraulic performance in an aluminum-bodied configuration. It is intended for users who want a metal pump while keeping weight below that of comparable all-steel designs.
A Different Material Choice for Portable 10,000 psi Work
The pump is configured for single-acting cylinders and tools and reaches the standard Enerpac 10,000 psi working range. Its two-speed mechanism supplies high displacement during initial movement, then switches to the high-pressure stage as the load is encountered.
Material choice is the main reason to consider P392AL. Enerpac notes that hand-pump construction can influence portability and resistance to the working environment. Aluminum provides a traditional metal body without the full weight of steel.
For corrosive environments where stainless-steel components are desirable, P392ALSS is the closer comparison. If minimum weight and composite-reservoir construction are preferred, the standard P392 remains the lighter-family alternative.
Specifications
| Pump Series | P-Series Aluminum |
|---|---|
| Power Source | Manual |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 55 in³ |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Pump Material | Aluminum |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | No |
