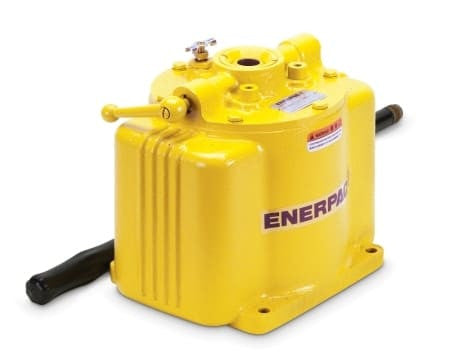

P50 Enerpac Low-Pressure Hand Pump is designed for single-acting hydraulic work that needs more pressure than the P25 or P51 but still does not require a 10,000 psi power source. Its 5,000 psi rating is the highest in Enerpac’s low-pressure P-Series group.
Efficient Pumping in Restricted Mounting Space
P50 is one of the low-pressure models that pumps oil during both forward and reverse handle movement. Enerpac highlights this feature as a way to improve pumping efficiency, particularly where restricted mounting space makes a full conventional handle stroke inconvenient.
The large 200 in³ reservoir supports cylinders and tools that need considerably more oil than compact low-pressure pumps can supply. An external load-release valve gives the operator direct control when returning a single-acting cylinder, while an internal pressure-relief valve protects against overload.
Select the P50 when a 5,000 psi ceiling and generous oil volume match the application. If only 2,500 psi is required, the P25 uses the same large-capacity concept with greater displacement per stroke.
Specifications
| Pump Series | P-Series Low Pressure |
|---|---|
| Power Source | Manual |
| Maximum Operating Pressure | 5,000 psi |
| Reservoir Capacity | 200 in³ |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | No |
