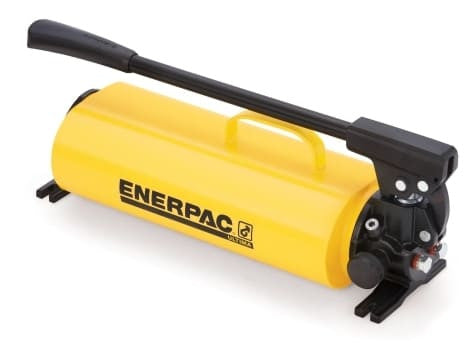

The Enerpac P801 is a hand-operated hydraulic pump with 250 in³ of usable oil capacity and a maximum pressure of 10,000 psi. Two-speed operation provides a low-pressure stage for initial movement and a high-pressure stage as resistance increases.
Key specifications
- Maximum operating pressure: 10,000 psi
- Usable oil capacity: 250 in³
- Pump speeds: 2
- Operation: hand-operated
- Cylinder application: compatible single-acting cylinders
- Construction: steel pump
Before ordering
Match the pressure, oil volume and valve arrangement to the cylinder and hose requirements. Choose sufficient usable oil capacity for the complete circuit. Cylinder, hose and gauge are sold separately.
Repair kits and related equipment
- P80K8 repair kit — For existing ULTIMA pumps with product codes beginning J and standard seals. Confirm the equipment identification markings and required seal type before ordering.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Series | P-Series ULTIMA |
|---|---|
| Pump Series | P-Series ULTIMA |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Manual |
| Oil Displacement - 1st Stage | 1.00 in³/stroke |
| Oil Displacement - 2nd Stage | 0.15 in³/stroke |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Reservoir Capacity | 250 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| ATEX Certified | No |
| Gauge Included | No |
| Pump Material | Steel |
