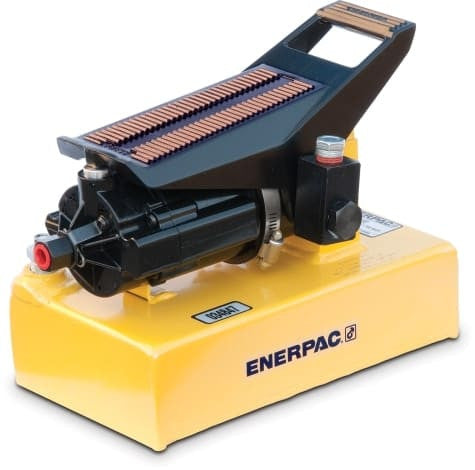

The Enerpac PA1150 is an air hydraulic pump with 80 in³ usable oil capacity and advance/hold/retract control.
Key specifications
- Maximum operating pressure: 10,000 psi
- Oil capacity: 80 in³ usable
- Valve: advance/hold/retract
- Application: single-acting cylinders
- Air pressure range: 60–120 psi
Before ordering
Confirm the tool pressure rating, required oil volume, valve operation and hose connections before ordering. Confirm the required air supply and air preparation. Match the valve to the cylinder action and return requirements.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Series | PA |
|---|---|
| Pump Series | PA Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 8 in³/min @ 10,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 80 in³ |
| Valve Operation | Foot / Hand Treadle |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 9 scfm |
| Air Pressure Range | 60–100 psi |
