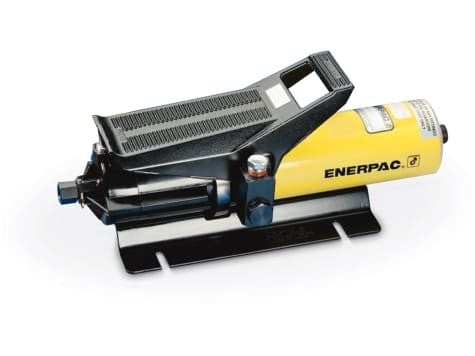

PA133 Enerpac PA Series Air Hydraulic Pump converts shop air into portable 10,000 psi hydraulic power for single-acting cylinders and tools.
Compact 10,000 psi PA Pump With Flexible Mounting
PA133 is the smallest-reservoir 10,000 psi pump in this PA group, with 36 in³ of usable oil. Enerpac specifically notes that PA133 can operate in all positions and provides base mounting slots, which makes it flexible for portable use or fixture integration. PA166 increases oil capacity to 72 in³, while PA1150 provides 80 in³ for systems needing more available fluid.
Enerpac lists the same basic hydraulic performance for these 10,000 psi PA pumps: 8 in³/min @ 10,000 psi at rated pressure and a three-position treadle that provides advance, hold and retract for a single-acting cylinder. The practical selection decision is therefore driven heavily by reservoir capacity and mounting/orientation needs.
Specifications
| Pump Series | PA Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 8 in³/min @ 10,000 psi |
| Reservoir Capacity | 36 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Operation | Foot / Hand Treadle |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 60–100 psi |
| Air Consumption | 9 scfm |
