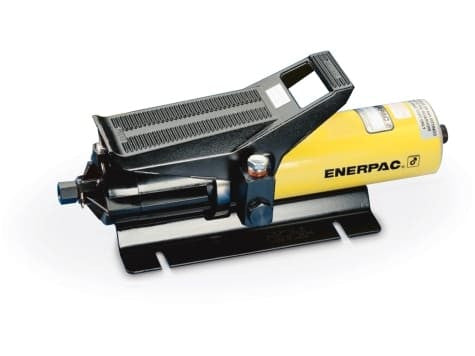

PA135 Enerpac PA Series Air Hydraulic Pump is a compact foot-operated power source for single-acting workholding cylinders and tools.
5,000 psi Workholding in a Compact Foot Pump
PA135 is the higher-pressure member of the compact PA workholding pair. Its 5,000 psi maximum is paired with 60 in³/min no-load flow, making it the better choice when clamping pressure matters more than the faster no-load movement of PA136. PA136 shares the same compact reservoir and treadle concept but is rated to 3,000 psi with twice the listed no-load flow.
Both models use a built-in 3-way, 2-position valve for single-acting cylinders, a treadle start, 360-degree swivel oil and air fittings, an adjustable relief valve and Enerpac's air-saving design. They are intended as compact compressed-air power sources for workholding fixtures.
Specifications
| Pump Series | PA Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 60 in³/min @ 0 psi |
| Reservoir Capacity | 36.6 in³ |
| Pump Operation | Foot Operated |
| Valve Configuration | 3-Way, 2-Position |
| Valve Operation | Foot Treadle |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 60–100 psi |
| Air Consumption | 12 scfm |
