A Configurable PACG Workholding Power Unit

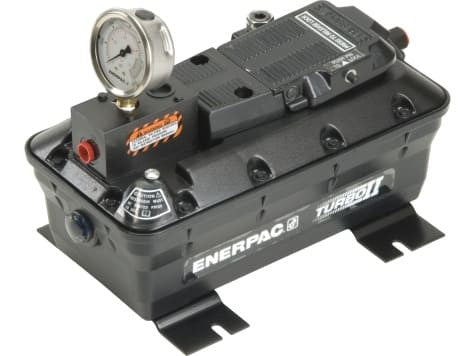

PACG3005SB Enerpac Turbo II Air Hydraulic Pump uses remote/manifold valve architecture and a 230 in³ reservoir. Those details should be matched to the fixture before pressure-flow performance is compared.
The hydraulic package is the Turbo II 3000 Series, which Enerpac uses as the higher-flow workholding option. PACG3005SB is published at 50 in³/min @ 3,000 psi; compare that mid-pressure delivery with the 5000 Series if the fixture spends most of its cycle near the upper pressure limit.
PACG3005SB is the mid-size PACG remote-valve configuration, carrying 230 in³ of oil while leaving directional control off-pump. It is a useful middle step when 127 in³ is too small but a 462 in³ reservoir is unnecessary.
PACG3002SB is the nearest smaller-reservoir alternative (127 in³). PACG30S8S is the nearest larger-reservoir alternative (462 in³). PACG5005SB keeps the same reservoir/control concept but changes to the 5000 Series flow profile.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 230 in³ |
| Valve Configuration | Pressure / Tank Ports for Remote Valve |
| Valve Operation | Remote Valve |
| Valve Function | Remote Valve Dependent |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
| Gauge Included | Yes |
