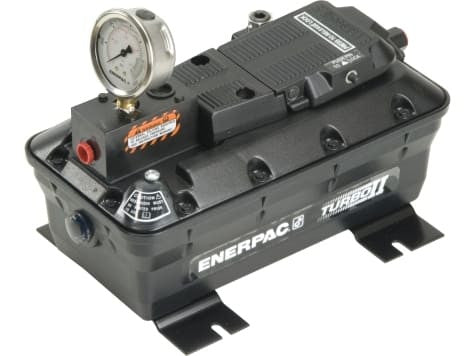

Within the Turbo II family, PACG5005SB is the 230 in³, remote/manifold valve architecture configuration. Its maximum hydraulic rating is 5,000 psi.
PACG5005SB is the mid-size PACG remote-valve configuration, carrying 230 in³ of oil while leaving directional control off-pump. It is a useful middle step when 127 in³ is too small but a 462 in³ reservoir is unnecessary.
Pressure/Tank Supply Without a Fixed Valve Function
PACG5002SB is the nearest smaller-reservoir alternative (127 in³). PACG50S8S is the nearest larger-reservoir alternative (462 in³). PACG3005SB keeps the same reservoir/control concept but changes to the 3000 Series flow profile.
The pump uses the Turbo II 5000 Series flow profile. Enerpac lists 20 in³/min @ 5,000 psi at rated pressure, so this is the pressure-oriented choice relative to the matching 3000 Series configuration with the same control style.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 230 in³ |
| Valve Configuration | Pressure / Tank Ports for Remote Valve |
| Valve Operation | Remote Valve |
| Valve Function | Remote Valve Dependent |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
| Gauge Included | Yes |
