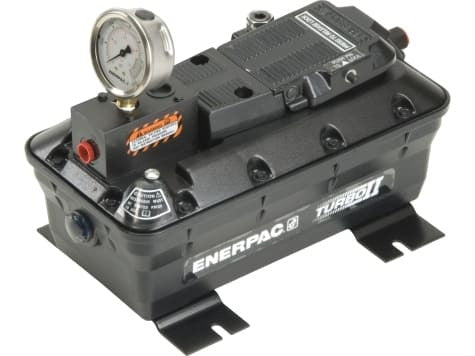

PACG3002SB Enerpac Turbo II Air Hydraulic Pump provides the compact 127 in³ PACG remote-valve layout with a #4 SAE hydraulic connection and the 3000 Series flow curve.
SAE-Port Compact Power for Remote Workholding Valves
This pump acts as the hydraulic source while the directional valve is mounted elsewhere in the system. The #4 SAE connection is the main hardware distinction from PACG3002PB, which uses BSPP threads.
The 3000 Series is rated at 50 in³/min at 3,000 psi. For the same compact SAE-port concept with the 5000 Series profile, compare PACG5002SB.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Pressure / Tank Ports for Remote Valve |
| Valve Operation | Remote Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
| Gauge Included | Yes |
