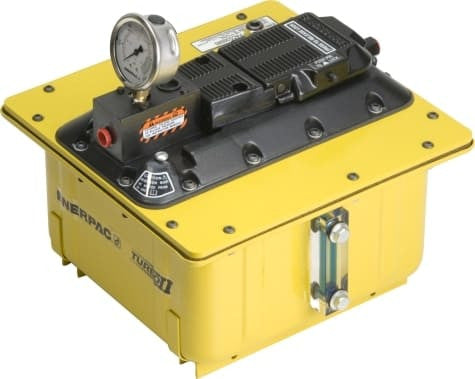

PACG30S8S Enerpac Turbo II Air Hydraulic Pump is a large-reservoir 3000 Series power unit intended to feed directional valves located away from the pump.
High-Flow Remote-Valve Supply
The 462 in³ reservoir gives the hydraulic circuit the most oil capacity in this PACG remote-port group. Pressure and tank connections let the machine builder place the actual valve package at the fixture, control panel or another convenient location.
Enerpac publishes 50 in³/min at 3,000 psi for the 3000 Series. PACG50S8S keeps the same large remote-valve layout but uses the 5000 Series flow profile; PACG30S8SMB2 adds two D03 stations directly at the pump instead.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Pressure / Tank Ports for Remote Valve |
| Valve Operation | Remote Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
| Gauge Included | Yes |
