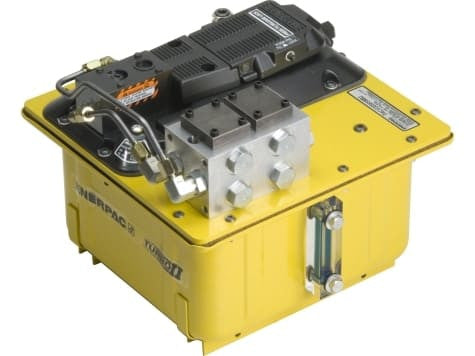

PACG30S8SWM10 is an Enerpac Turbo II air-hydraulic pump built around remote/manifold valve architecture, 462 in³ of reservoir capacity and the 3000 Series higher-flow hydraulic profile.
Remote-Valve Power for a Custom Fixture
PACG30S8SWM10 is built for the most expandable PACG valve arrangement in this group. Its 462 in³ reservoir feeds a VP manifold that can accommodate one to eight compatible valves, making valve count—not just pump output—the defining selection issue.
The hydraulic package is the Turbo II 3000 Series, which Enerpac uses as the higher-flow workholding option. PACG30S8SWM10 is published at 50 in³/min @ 3,000 psi; compare that mid-pressure delivery with the 5000 Series if the fixture spends most of its cycle near the upper pressure limit.
PACG3005SB is the nearest smaller-reservoir alternative (230 in³). PACG50S8SWM10 keeps the same reservoir/control concept but changes to the 5000 Series flow profile.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 462 in³ |
| Valve Configuration | VP Valve Manifold, 1–8 Valves |
| Valve Operation | Remote Valve |
| Valve Function | Remote Valve Dependent |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
| Gauge Included | Yes |
