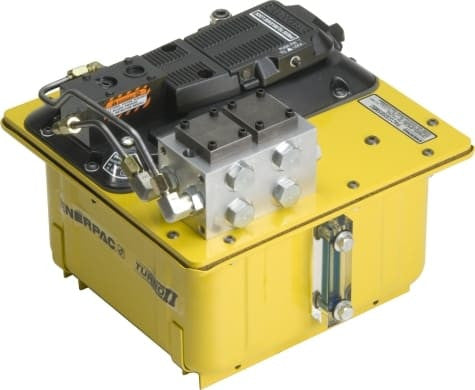

PACG30S8SMB2 Enerpac Turbo II Air Hydraulic Pump combines the large 462 in³ reservoir with a two-station D03 manifold and the higher-flow 3000 Series.
Two D03 Functions From One Turbo II Power Source
The two valve stations are the reason to select this model. It offers more integrated control capacity than a single D03 PASG pump without moving to the four-station PACG30S8SMB4 or the broader VP-manifold configuration.
Enerpac lists 50 in³/min at 3,000 psi for the 3000 Series. PACG50S8SMB2 keeps the same two-station manifold and reservoir size but changes to the 5000 Series pressure-flow curve.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Two D03 Valve Manifold |
| Valve Operation | Remote Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
| Gauge Included | Yes |
