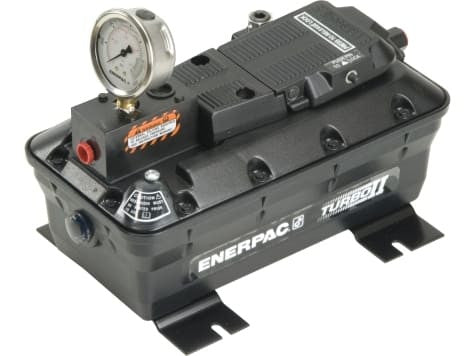

PACG5002SB Enerpac Turbo II 5000 Series Air Hydraulic Pump, 5,000 psi, 127 in³, Remote Valve Mount

A Configurable PACG Workholding Power Unit

PACG5002SB Enerpac Turbo II Air Hydraulic Pump uses remote/manifold valve architecture and a 127 in³ reservoir. Those details should be matched to the fixture before pressure-flow performance is compared.

The pump uses the Turbo II 5000 Series flow profile. Enerpac lists 20 in³/min @ 5,000 psi at rated pressure, so this is the pressure-oriented choice relative to the matching 3000 Series configuration with the same control style.

PACG5002SB is the compact PACG remote-valve model, using 127 in³ of reservoir capacity and pressure/tank connections instead of an integral directional valve. It suits smaller custom workholding circuits where valve placement is remote from the pump.

PACG5005SB is the nearest larger-reservoir alternative (230 in³). PACG3002PB keeps the same reservoir/control concept but changes to the 3000 Series flow profile. a #4 SAE hydraulic connection for PACG5002SB. The corresponding PB version uses BSPP threads, making connection standard—not pump output—the primary reason to choose one of these otherwise similar configurations over the other.

Enerpac lists a #4 SAE hydraulic connection for PACG5002SB. The corresponding PB version uses BSPP threads, making connection standard—not pump output—the primary reason to choose one of these otherwise similar configurations over the other.
