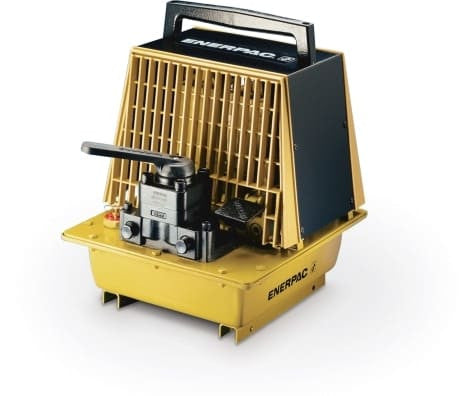

PAM1021 Enerpac PAM Air Hydraulic Pump is the smallest-reservoir single-acting model in this PAM group. Its 0.7-gallon oil capacity keeps the package compact while the 3-way valve is matched to single-acting cylinder operation.
Compact PAM Pump for Single-Acting Cylinders
Select PAM1021 when the circuit does not require the 2.0-gallon reservoir of PAM1022. The smaller oil supply reduces package size, but the cylinder and hose volume still need to fit comfortably within the available capacity.
Despite the compact reservoir, the pump retains the PAM family's twin-air-motor performance: high first-stage oil delivery for rapid approach and 9 in³/min at the full 10,000 psi rating.
Specifications
| Series | PAM |
|---|---|
| Pump Series | PAM Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 9 in³/min @ 10,000 psi |
| Pump Operation | Air Operated |
| Reservoir Capacity | 0.7 gal |
| Valve Model | VM2 |
| Valve Configuration | 3-Way, 2-Position |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 18 scfm |
| Air Pressure Range | 60–120 psi |
