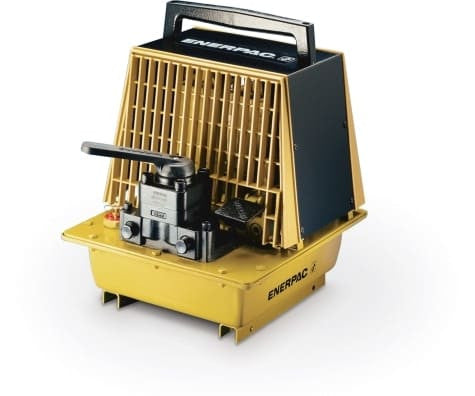

PAM1041 Enerpac PAM Air Hydraulic Pump is the compact-reservoir double-acting member of the PAM family, using 0.7 gallon of oil capacity with a 4-way valve.
Double-Acting Control in the Smaller PAM Package
Compared with PAM1042, this model retains powered advance and retract but reduces reservoir capacity from 2.0 gallons to 0.7 gallon. It is the better fit when the connected cylinder's oil demand is modest and a smaller pump package is preferred.
Enerpac uses twin air motors to provide rapid low-pressure cylinder movement, with up to 650 in³/min through approximately 200 psi before high-pressure flow settles to 9 in³/min at 10,000 psi.
Specifications
| Series | PAM |
|---|---|
| Pump Series | PAM Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 9 in³/min @ 10,000 psi |
| Pump Operation | Air Operated |
| Reservoir Capacity | 0.7 gal |
| Valve Model | VM4 |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Air Consumption | 18 scfm |
| Air Pressure Range | 60–120 psi |
