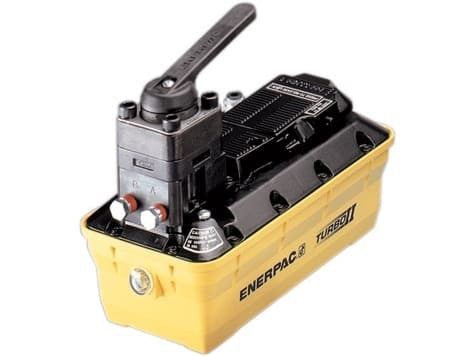

PAMG3402NB Enerpac Turbo II Air Hydraulic Pump is the compact NPTF-port, double-acting model in the 3000 Series. Its 127 in³ reservoir works with a 4-way manual valve for powered advance and return.
Small-Reservoir Double-Acting Pump With NPTF Port
Enerpac lists a 3/8-18 NPTF hydraulic connection on this configuration. The manual directional valve sets it apart from single-acting PATG and PARG models, while the air treadle runs the power unit.
The 3000 Series is published at 50 in³/min at 3,000 psi. PAMG3402PB provides the same reservoir and flow profile with BSPP threads; PAMG5402NB keeps the NPTF connection but changes to the 5000 Series hydraulic curve.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual Valve / Air Treadle |
| Cylinder Compatibility | Double-Acting |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
