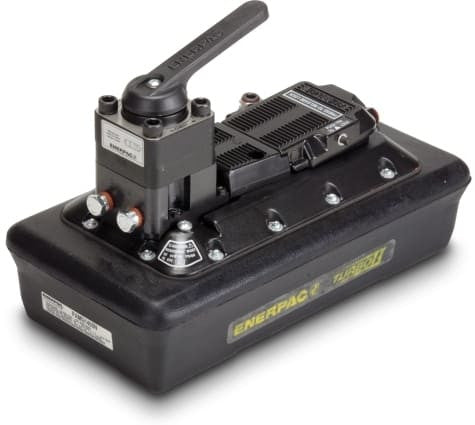

The reason to choose PAMG34S8N is its exact combination of manual 4-way double-acting control and 462 in³ oil capacity. It is part of Enerpac's Turbo II 3000 Series higher-flow group.
PAMG3405NB is the nearest smaller-reservoir alternative (230 in³). PAMG54S8N keeps the same reservoir/control concept but changes to the 5000 Series flow profile.
Why PAMG Is the Double-Acting Choice
PAMG34S8N is the large-reservoir double-acting Turbo II configuration. Its 462 in³ tank supports higher oil-volume circuits, while the 4-way manual valve provides direct advance, hold and retract control for a double-acting cylinder.
The hydraulic package is the Turbo II 3000 Series, which Enerpac uses as the higher-flow workholding option. PAMG34S8N is published at 50 in³/min @ 3,000 psi; compare that mid-pressure delivery with the 5000 Series if the fixture spends most of its cycle near the upper pressure limit.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual Valve / Air Treadle |
| Cylinder Compatibility | Double-Acting |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
