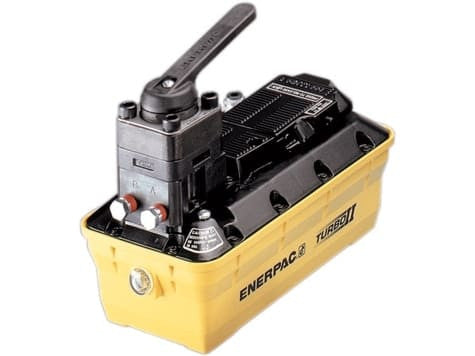

PAMG5402NB Enerpac Turbo II Air Hydraulic Pump is a 127 in³, 5000 Series power unit for double-acting cylinders, using a manual 4-way valve and NPTF hydraulic connection.
Compact Double-Acting Control With the 5000 Series Profile
The small reservoir is intended for circuits with modest oil-volume demand, but the valve still provides hydraulic power in both directions. Enerpac lists a 3/8-18 NPTF connection, differentiating this model from the PB version.
Rated flow is 20 in³/min at 5,000 psi. PAMG3402NB keeps the NPTF port and reservoir size but changes to the higher-flow 3000 Series, while PAMG54S8N increases oil capacity substantially within the 5000 family.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 127 in³ |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual Valve / Air Treadle |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
