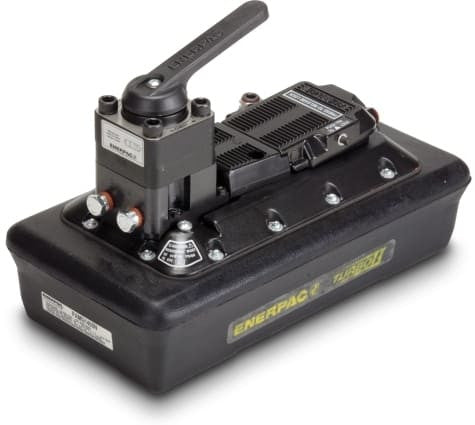

PAMG54S8N Enerpac Turbo II Air Hydraulic Pump is the large-reservoir 5000 Series configuration for double-acting workholding. Its 462 in³ oil capacity is paired with a manual 4-way valve.
Large-Capacity Double-Acting Turbo II Power
This is the model to evaluate when a double-acting fixture needs more available oil but does not require electric or solenoid directional control. The air treadle powers the pump while the manual valve directs cylinder advance, hold and retract.
Enerpac lists 20 in³/min at 5,000 psi. PAMG5405NB offers a smaller 230 in³ reservoir with the same basic double-acting control concept, while PAMG34S8N keeps the large reservoir and changes to the 3000 Series flow profile.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Reservoir Capacity | 462 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual Valve / Air Treadle |
| Cylinder Compatibility | Double-Acting |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
