Air-Treadle Power With a 4-Way Valve

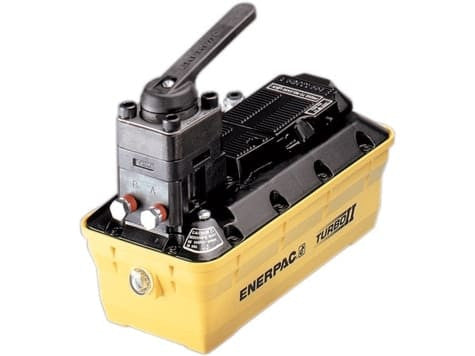

PAMG1402N Enerpac Turbo II Air Hydraulic Pump uses manual 4-way double-acting control and a 127 in³ reservoir. Those details should be matched to the fixture before pressure-flow performance is compared.
This model belongs to the 10,000 psi Turbo II group rather than the 3,000/5,000 psi workholding versions. Enerpac lists 10 in³/min @ 10,000 psi at full pressure, so every connected hose, valve and cylinder must be suitable for the 10,000 psi system rating.
PAMG1402N packages double-acting control into the smallest PAMG reservoir size in this group. The 127 in³ tank keeps the power unit compact, while the manual 4-way valve still provides powered movement in both directions.
PAMG1405N is the nearest larger-reservoir alternative (230 in³).
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 10 in³/min @ 10,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual Valve / Air Treadle |
| Cylinder Compatibility | Double-Acting |
| Air Pressure Range | 40–125 psi |
| Air Consumption | 12 scfm |
