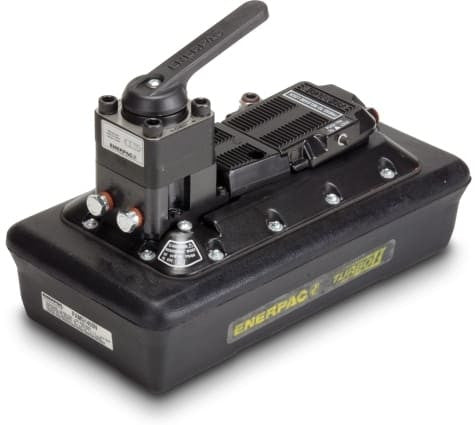

Within the Turbo II family, PAMG1405N is the 230 in³, manual 4-way double-acting control configuration. Its maximum hydraulic rating is 10,000 psi.
PAMG1405N is the mid-capacity PAMG model, pairing a 230 in³ reservoir with manual 4-way control for double-acting cylinders. It sits between the smaller 127 in³ pump and the 462 in³ version without changing the basic valve strategy.
Powered Advance and Return Without Solenoids
PAMG1402N is the nearest smaller-reservoir alternative (127 in³).
This model belongs to the 10,000 psi Turbo II group rather than the 3,000/5,000 psi workholding versions. Enerpac lists 10 in³/min @ 10,000 psi at full pressure, so every connected hose, valve and cylinder must be suitable for the 10,000 psi system rating.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 10 in³/min @ 10,000 psi |
| Reservoir Capacity | 230 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual Valve / Air Treadle |
| Cylinder Compatibility | Double-Acting |
| Air Pressure Range | 40–125 psi |
| Air Consumption | 12 scfm |
