Why PARG Fits Awkward or Large Fixtures

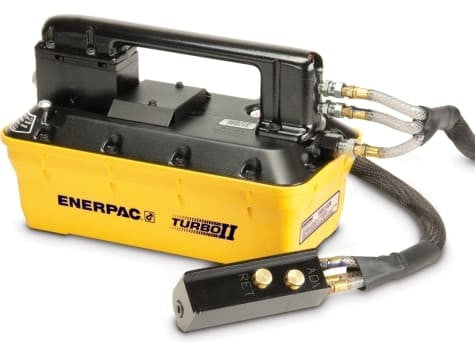

PARG3102NB Enerpac Turbo II Air Hydraulic Pump uses remote air-pendant control and a 127 in³ reservoir. Those details should be matched to the fixture before pressure-flow performance is compared.
The hydraulic package is the Turbo II 3000 Series, which Enerpac uses as the higher-flow workholding option. PARG3102NB is published at 50 in³/min @ 3,000 psi; compare that mid-pressure delivery with the 5000 Series if the fixture spends most of its cycle near the upper pressure limit.
PARG3102NB is the compact PARG option, combining remote air-pendant control with 127 in³ of reservoir capacity. It is best evaluated for smaller single-acting workholding circuits where remote operation matters but carrying the larger PARG reservoir is unnecessary.
PARG3105NB is the nearest larger-reservoir alternative (230 in³). PARG5102NB keeps the same reservoir/control concept but changes to the 5000 Series flow profile.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Remote Pendant |
| Valve Configuration | 3-Way Remote Air Pendant |
| Valve Operation | Remote Air Pendant |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
