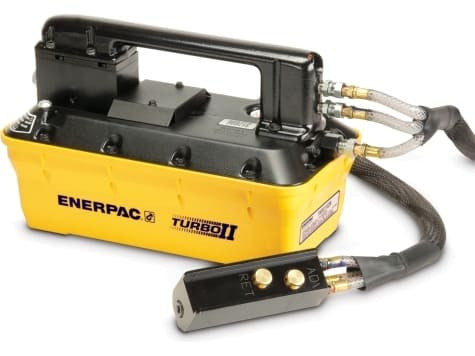

Within the Turbo II family, PARG3105NB is the 230 in³, remote air-pendant control configuration. Its maximum hydraulic rating is 5,000 psi.
PARG3105NB is the middle-capacity PARG configuration: remote pendant control for a single-acting circuit with 230 in³ of oil. It is the balancing point between the compact 127 in³ version and the 462 in³ model when the operator still wants control away from the power unit.
Keep the Power Unit Away From the Work Area
PARG3102NB is the nearest smaller-reservoir alternative (127 in³). PARG31S8N is the nearest larger-reservoir alternative (462 in³). PARG5105NB keeps the same reservoir/control concept but changes to the 5000 Series flow profile.
The hydraulic package is the Turbo II 3000 Series, which Enerpac uses as the higher-flow workholding option. PARG3105NB is published at 50 in³/min @ 3,000 psi; compare that mid-pressure delivery with the 5000 Series if the fixture spends most of its cycle near the upper pressure limit.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Pump Operation | Remote Pendant |
| Reservoir Capacity | 230 in³ |
| Valve Configuration | 3-Way Remote Air Pendant |
| Valve Operation | Remote Air Pendant |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
